Fiber Connectors Overview
Fiber optic connectors are essential components in optical communication systems, enabling quick and stable connections between fibers. Among various types, LC, SC, and field assembly fast connectors are widely used due to their compact size, high reliability, and easy installation.
They are commonly applied in FTTH, data centers, telecom networks, and ODN systems, where quick field termination and low signal loss are crucial.
Connector Types and Structures

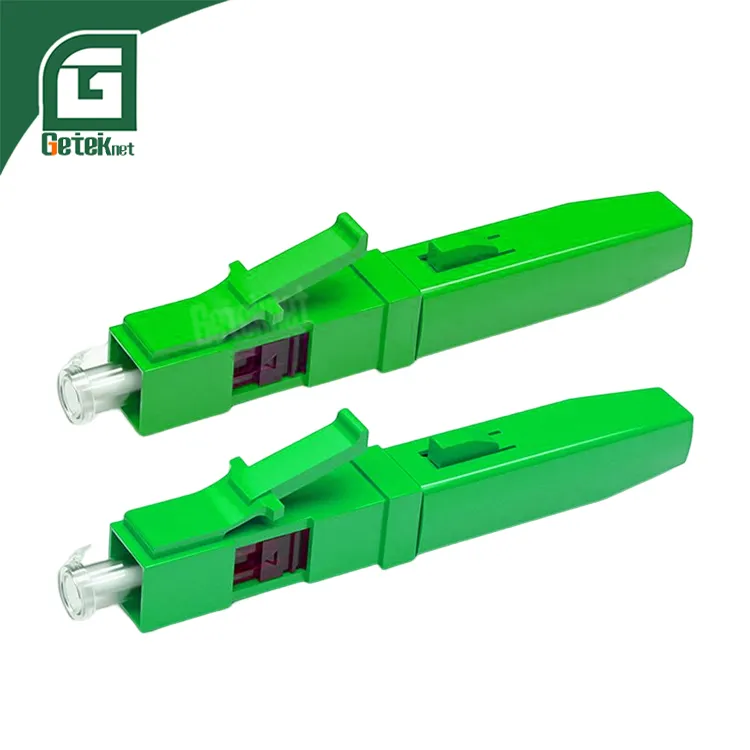

1. LC Fiber Connector
The LC connector features a small form factor with a 1.25 mm zirconia ferrule, making it ideal for high-density patch panels.
It provides stable optical performance with typical insertion loss < 0.3 dB and return loss > 50 dB (UPC) or > 55 dB (APC).
LC connectors are often used in single-mode networks and high-speed 10G/40G/100G links.

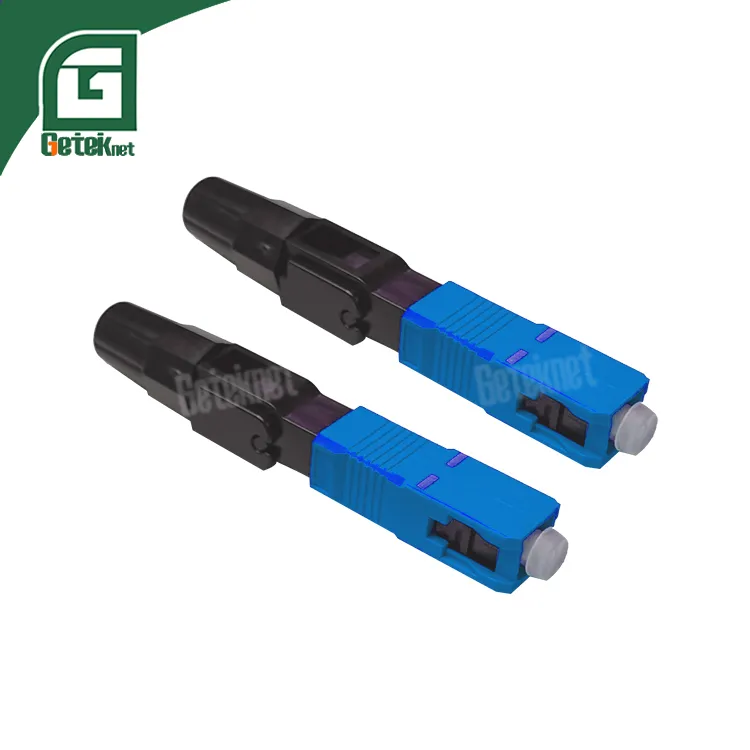

2. SC Fiber Connector
The SC connector adopts a 2.5 mm ferrule with a push-pull coupling mechanism.
It offers excellent durability and consistent alignment, suitable for telecom rooms and ODN applications.
SC fast connectors are available in UPC and APC polishing types, compatible with G652D and G657A fibers.

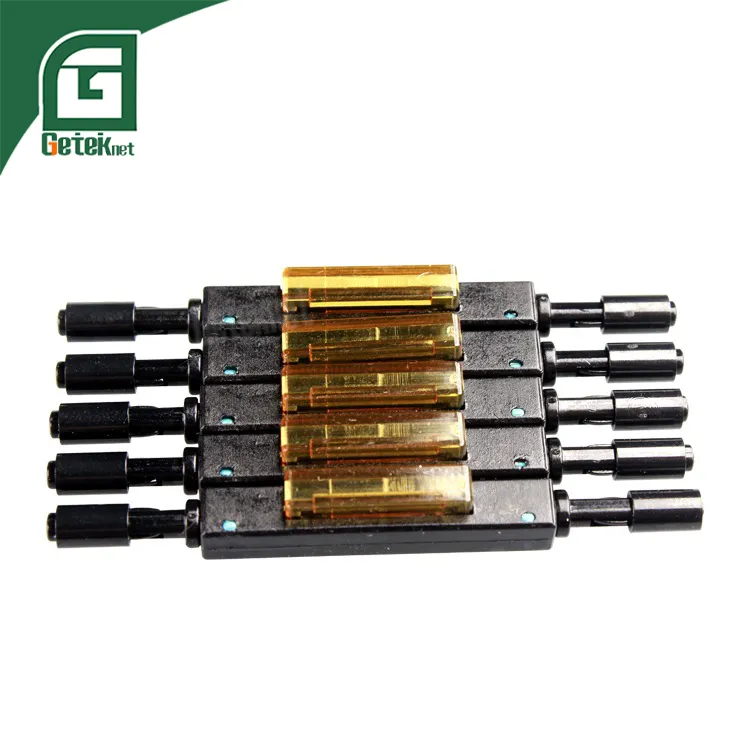

3. Fiber Mechanical Splice
A Fiber Mechanical Splice is used to permanently join two optical fibers end-to-end using a mechanical structure, without a standard plug interface.
It is typically applied for mid-span fiber repair or extension, rather than device connections.
The splice uses a high-precision V-groove to align the fibers and often includes a refractive index matching gel to minimize reflection.
Performance: insertion loss 0.1–0.3 dB, not pluggable.
Commonly used in FTTH for splice alternatives or temporary repairs.

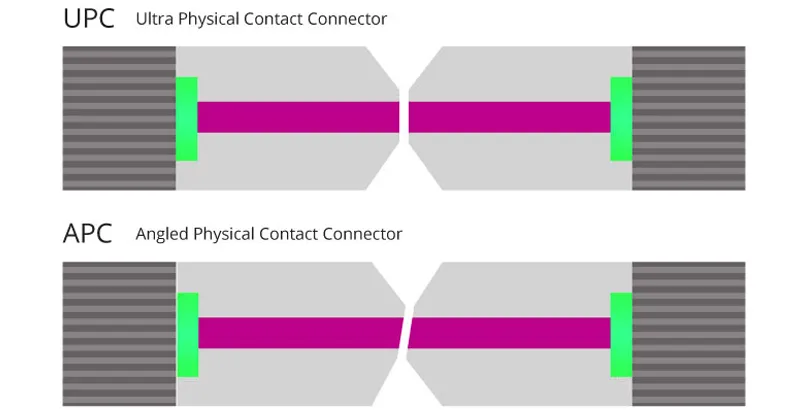

APC vs UPC Polishing
APC (Angled Physical Contact) and UPC (Ultra Physical Contact) describe the polishing styles of connector end faces, which directly impact return loss and reflection.
-
UPC connectors have a flat, highly polished end face. They provide low insertion loss and moderate return loss, making them suitable for standard single-mode digital links.
-
APC connectors have an end face polished at an ~8° angle. This angle redirects reflected light into the cladding rather than back into the core, resulting in much higher return loss (lower back-reflection). APC is ideal for sensitive links such as analog RF over fiber, PON uplinks, and long-haul single-mode networks.
Note: APC (green) and UPC (blue) connectors are not interchangeable — always match polish types when connecting.
Optical Performance Parameters
| Parameter | Typical Value | الوصف |
| Insertion Loss (IL) | ≤ 0.3 dB | Optical power loss during connection |
| Return Loss (RL) | ≥ 50 dB (UPC) / ≥ 55 dB (APC) | Reflection at the connection interface |
| نوع الألياف | G652D / G657A1 / G657A2 | Compatible with standard single-mode fibers |
| Operating Temperature | -40°C ~ +75°C | Ensures stable performance in harsh environments |
These parameters ensure stable transmission and signal integrity, meeting the requirements of FTTH networks and high-bandwidth data communication.
Applications of Fiber and Fast Connectors
-
FTTH (Fiber to the Home): Enables quick and reliable drop cable terminations.
-
Data Centers: Supports high-density LC and SC panels for equipment interconnection.
-
Telecom Networks: Used in optical distribution frames (ODF) and cross-connect cabinets.
-
Field Maintenance: Fast connectors simplify repair and temporary connections.
Material and Assembly Features
Most fiber connectors adopt zirconia ceramic ferrules for precision alignment and stable optical performance.
Housings are made from high-strength polymer or metal, ensuring good protection and long service life.
Field connectors are pre-polished and include an alignment mechanism, allowing technicians to complete termination within minutes.
Conclusion
Understanding the structure, optical parameters, and application of fiber connectors helps engineers select the right component for each network scenario.
Whether it’s an LC connector for data centers or a fast connector for field installation, high-quality optical connectivity ensures efficient network operation and long-term reliability.
