Introduction
A network patch cord (or Ethernet patch cable) connects networking devices such as switches, routers, and patch panels. Though small, it plays a key role in maintaining signal integrity and stable data transmission across LAN and data center environments.
Cable Construction
A patch cord is a precise assembly of components designed to minimize loss e interference.
-
Conductor: Usually 24AWG or 26AWG pure copper, offering low attenuation. Solid cores provide stability; stranded types offer flexibility.
-
Insulation: High-density polyethylene (HDPE) ensures consistent dielectric performance.
-
Twisted Pairs: Four color-coded pairs are tightly twisted to reduce crosstalk (NEXT/FEXT).
-
Shielding:
-
UTP – unshielded, flexible, common in office networks.
-
FTP – foil-shielded, moderate EMI resistance.
-

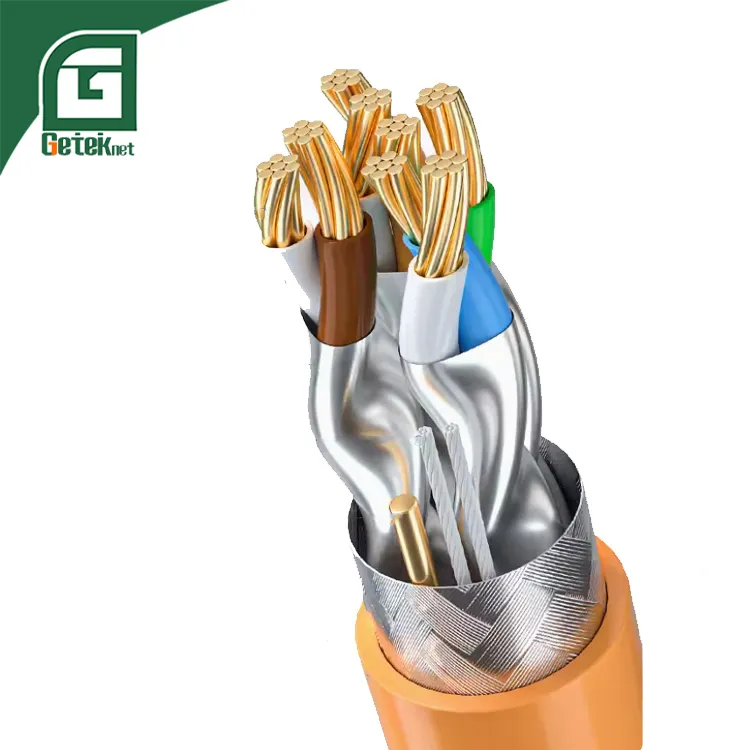

S/FTP – each pair foil-shielded with overall braid, ideal for high-speed data centers.
-
-
Jacket: PVC for flexibility or LSZH for flame-retardant safety.
-

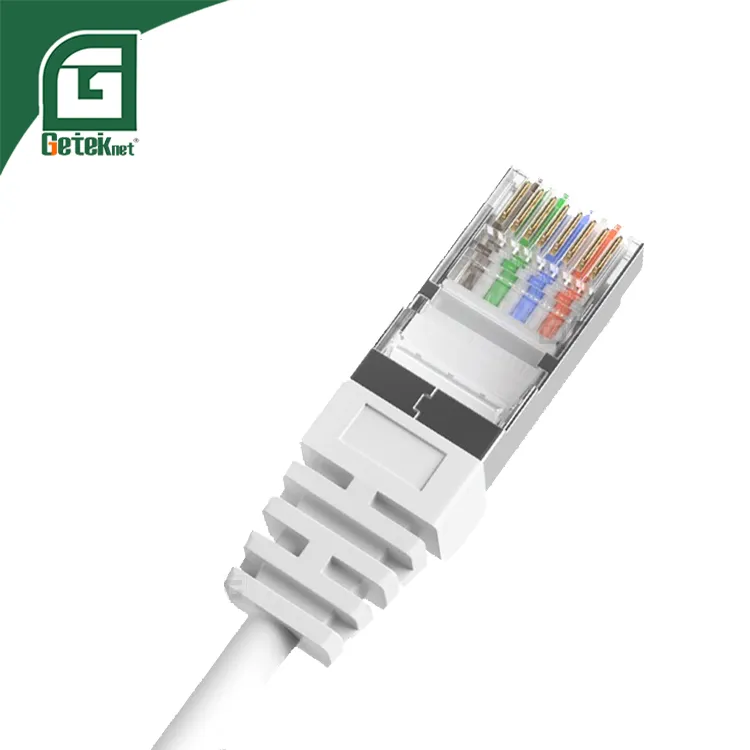

Connector: RJ45 with gold-plated contacts to ensure reliable signal contact under T568A or T568B wiring.
Categories and Performance
Patch cords are defined by bandwidth and speed performance per TIA/EIA e ISO/IEC standard.
| Category | Bandwidth | Applicazione | Shielding | Max Speed |
| Cat5e | 100 MHz | Fast Ethernet | UTP | 1 Gbps |
| Cat6 | 250 MHz | Gigabit LAN | UTP / STP | 1–10 Gbps (≤55m) |
| Cat6a | 500 MHz | 10GBase-T | UTP / F/UTP | 10 Gbps |
| Cat7 | 600 MHz | Data Center Backbone | S/FTP | 10 Gbps |
| Cat8 | 2000 MHz | 25/40GBase-T | S/FTP | 25–40 Gbps |
Performance indicators include:
-
Insertion Loss (IL): Power loss during transmission.
-
Return Loss (RL): Signal reflection due to impedance mismatch.
-
Crosstalk (NEXT/FEXT): Pair-to-pair interference.
-
Delay Skew: Time difference between pairs.
Mechanical Reliability
Beyond electrical performance, physical durability is essential:
-
Strain relief boots protect connector joints.
-
Bending and pull tests verify flexibility and strength.
-
Cable diameter (5–8mm) affects airflow and bend radius in dense racks.
Material stability under temperature and humidity ensures long-term performance.
Testing and Standards

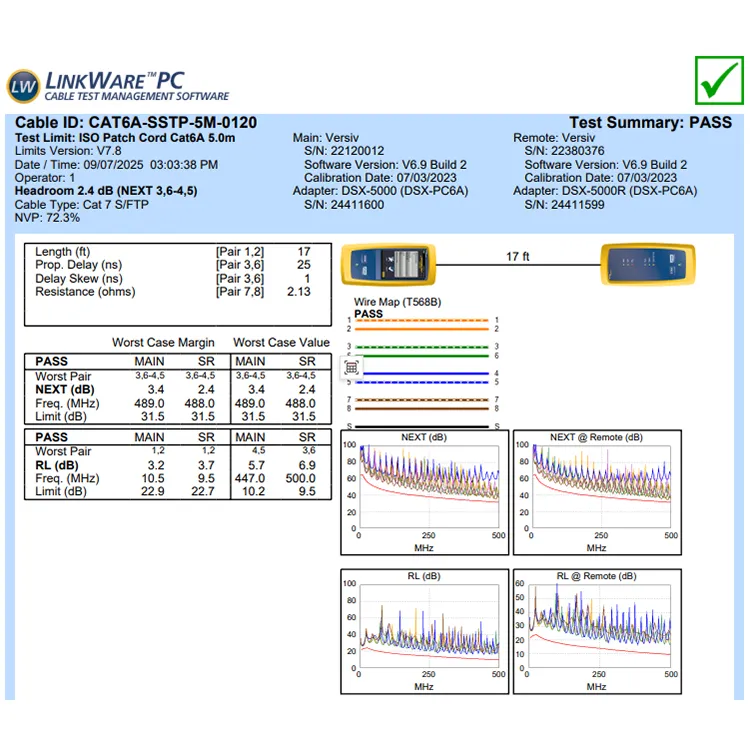

Every high-quality patch cord undergoes Fluke testing or equivalent verification per ANSI/TIA-568.2-D e ISO/IEC 11801 standard.
Main test parameters include:
-
Wire Map for correct pinout
-
Insertion Loss & Return Loss for transmission integrity
-
NEXT/FEXT for crosstalk isolation
-
Length and Delay Skew for synchronization
For Cat7 and Cat8, testing follows IEC 61156-7/8, focusing on shielding performance and 2000 MHz bandwidth compliance.
Evolving Trends
Modern cabling systems demand patch cords that support PoE++ (up to 100W), higher frequencies, e denser rack environments.
Key trends include:
-
Enhanced shielding and grounding for EMI control.
-
Optimized thermal stability for power transmission.
-
Smaller-diameter cables for high-density data centers.
-
Environmentally safe LSZH and halogen-free materials.
Conclusion
A network patch cord is a precision component that determines the reliability of entire network links.
Understanding its construction, category performance, and test standards helps ensure efficient, interference-free communication across modern Ethernet systems—from enterprise LANs to high-speed data centers.
