In modern optical communication networks, efficient cable organization and signal reliability are critical. The fiber patch panel, also known as an optical distribution frame (ODF), plays a key role in terminating, distributing, and protecting optical fibers. With the rise of high-density data centers and FTTH systems, traditional ODF designs are being complemented by MPO/MTP-based fiber patch panels that greatly improve connection efficiency and scalability.
Technical Role and Design of Fiber Patch Panel
A fiber patch panel functions as a centralized interface between external optical cables and internal network equipment. Its purpose is to provide stable fiber termination, organized routing, and efficient maintenance access.
Structurally, a typical ODF integrates:
-
Adapter panels supporting SC, LC, FC, or ST connectors
-
Splice trays for secure fusion splicing and excess fiber storage
-
Cable management modules ensuring minimum bend radius and strain relief
-
Protective enclosures shielding fibers from dust, stress, and environmental exposure

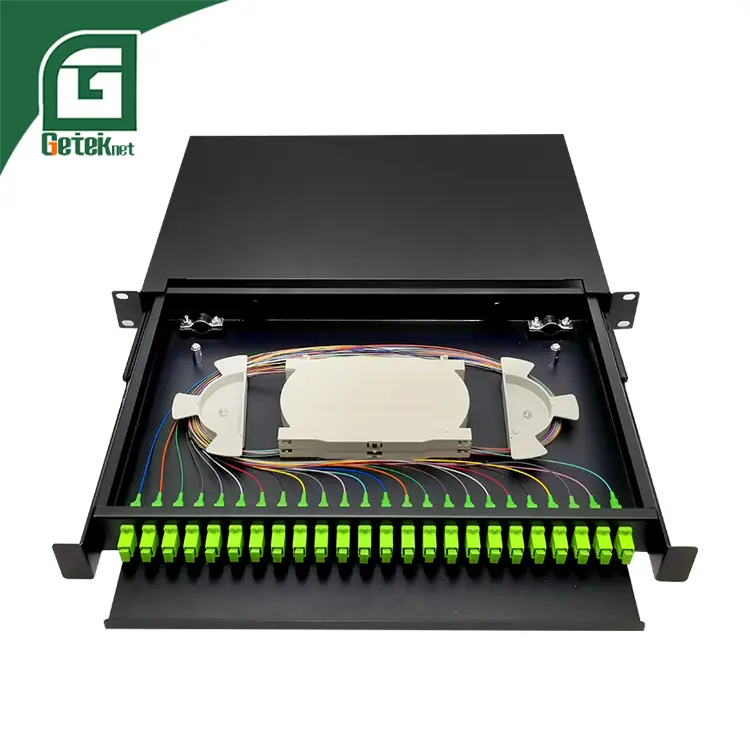

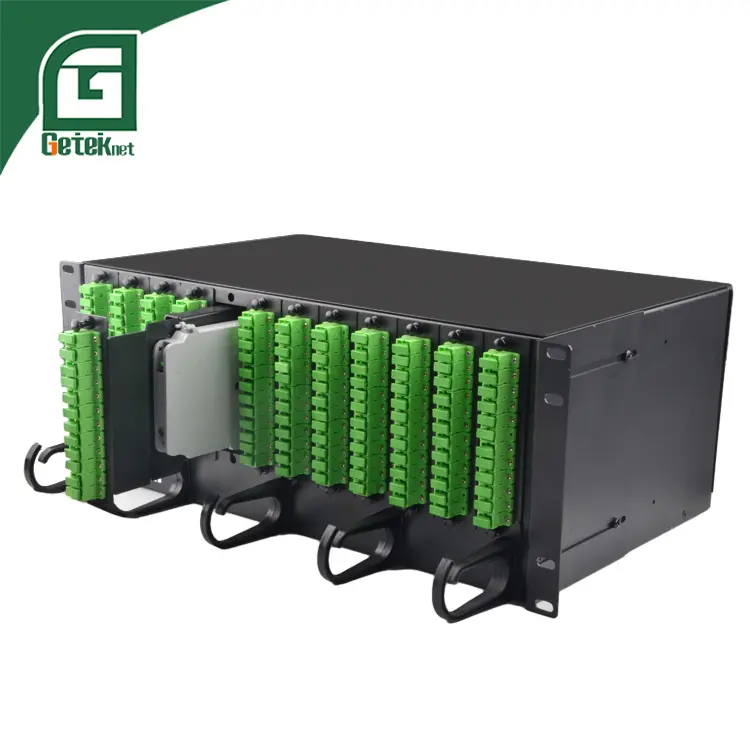

The standard 19-inch rack-mount ODF remains widely adopted, while wall-mounted and sliding drawer types offer flexibility for compact or distributed installations.

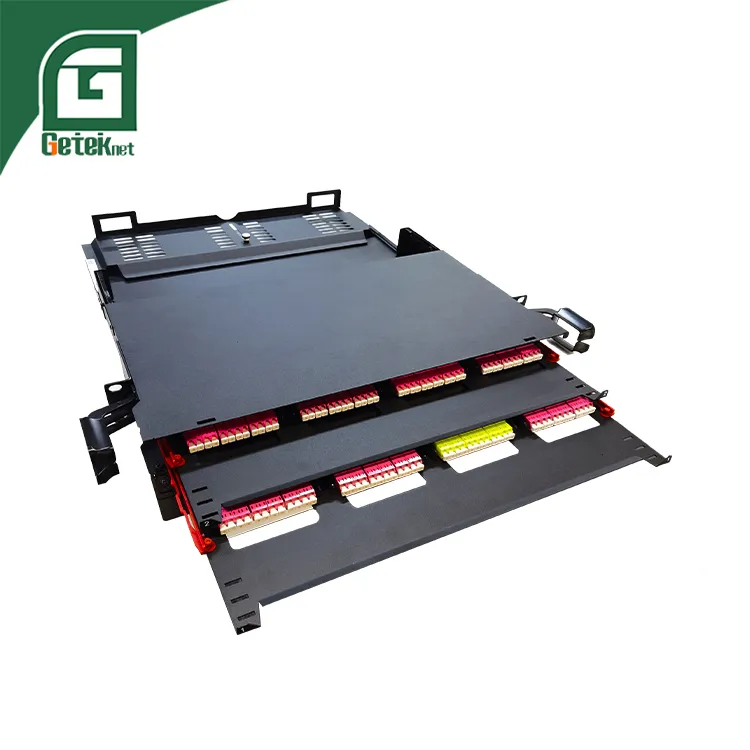

Transition to High-Density MPO Fiber Patch Panels
With the rapid expansion of data traffic and cloud computing, the need for high-density fiber management has driven the adoption of MPO/MTP patch panels.
These systems utilize multi-fiber connectors (typically 12, 24, or 48 fibers per interface) to enable fast deployment and modular scalability.
Key technical advantages include:
-
Compact connection density – supports hundreds of fiber terminations per rack unit.
-
Factory-terminated MPO trunks – reduce field splicing errors and installation time.
-
Polarity management – supports Type A/B/C configurations for structured cabling.
-

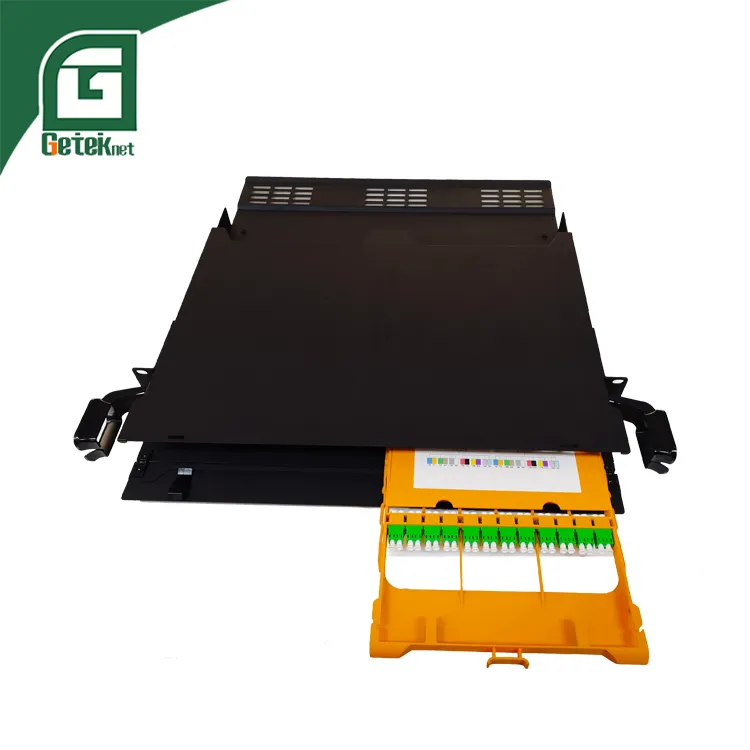

Modular cassettes – allow quick exchange between MPO trunks and LC/SC breakout ports.
Such configurations are essential in data centers, central offices, and backbone network nodes, where maintaining both signal integrity and space efficiency is crucial.
Material and Mechanical Reliability
Fiber patch panels are typically made from cold-rolled steel or aluminum alloy, coated with anti-corrosion powder finishes. Internal modules use flame-retardant ABS and ceramic adapter sleeves to ensure precise alignment and long-term optical stability.
Thermal and mechanical performance testing—such as insertion loss, return loss, and vibration resistance—is critical to ensure that ODFs meet IEC 61755 and GR-326 standards.
Integration and Customization in Engineering Applications
Modern network projects often require hybrid deployment, combining traditional ODFs with MPO/MTP panels in the same rack or cabinet.
This hybrid architecture enables:
-
Flexible migration from 10G/25G to 40G/100G systems
-
Simplified maintenance and future scalability
-
Clear fiber routing and labeling for efficient troubleshooting
In engineering practice, the ODF layout should consider fiber direction, port density, and modular compatibility, ensuring that each distribution point remains accessible and upgrade-ready.
Manufacturing Quality and OEM Adaptability
Although this article focuses on the technical perspective, it is worth noting that professional ODF manufacturers play an essential role in enabling reliable fiber distribution.
At Geteknet, advanced precision fabrication and automated assembly lines allow the production of rack mount, wall mount, and MPO-type fiber patch panels under ISO9001 quality control.
This ensures that products meet project-specific requirements, whether for telecom operators, data center integrators, or OEM partners seeking consistent quality and design flexibility.
Conclusion
The fiber patch panel (ODF) remains the backbone of any optical cabling system, and the evolution toward high-density MPO configurations represents the next step in network optimization.
By integrating robust structure, modularity, and precise fiber management, modern ODF solutions support both current FTTH deployments and future high-bandwidth expansions.
For engineers and system designers, understanding these technologies is key to achieving efficient, scalable, and low-loss optical infrastructures.
👉 Looking for a reliable OEM fiber patch panel supplier? Contact GETEKnet today to discuss your specifications and get a custom quote.
